Rapid Composting Machine

 Carbonizer





High efficiency organic aerobic composting resource recycling equipment
Automation • Labor-saving • No odor •
No emissio
ns





 Rapid Composting Machine Introduction



Rapid composting machine, also known as high-temperature aerobic composting machine.
The organic sludge, kitchen waste, pig manure, poultry manure, agricultural waste, etc., in accordance with a certain percentage of mixed crushing evenly, and adjust the water content to achieve the desired conditions, the batch sent to r
apid composting machine processing
Fermented completely discharged product, that is excellent organic fertilizer.

During the treatment, the composting machine continuously agitates and aerates, the temperature is controlled at about 55-60 and the high temperature generated by the fermentation can make the pathogen, parasite and weed seeds possibly contained in the material die.
Composting machine exhaust gas, the use of biological deodorization system for odor removal, no secondary pollution.

Application of rapid composting machine, in 7 to 8 days, the waste of organic matter will biodegrade completely, to achieve harmless, stable,  resource purposes.





 Rapid Composting Machine Advantages



★ saving energy, low operating costs,  saving space.
★ PLC automation control, remote monitoring.
★ close system, no secondary pollution.
★ microbial deodorization, with no air pollution.
★ The internal body made of stainless steel 304, corrosion-resistant, long service life.
★ equipped with auxiliary air heating device to ensure the normal operation of equipment at low temperatures.
★ short payback period, only 1 to 2 years.



 Rapid Composting Machine Specification



型號

I-10

I-20

I-25

I-40

I-60

I-90

I-120

Capacity

10 m³

19 m³

23 m³

39 m³

56 m³

86 m³

116 m³

Lift Capacity

0.6 m³

0.6 m³

0.8 m³

1.0 m³

1.0 m³

1.5 m³

2.0 m³

Weight

4 ton

7 ton

11 ton

15 ton

18 ton

26 ton

32 ton

Upper Blower

--

--

--

1.9/3.4 kW

2.2 kW

2.2 kW

2.2 kW

Low Blower

3.4 kW

3.4 kW

5.0 kW

5.0 kW

9.0 kW

18 kW

18 kW

Mixer

1.5 kW

2,2 kW

3.7 kW

3.7 kW

5.5 kW

7.5 kW

7.5 kW

Input slot motor

0.1 kW

0.1 kW

0.1 kW

0.1 kW

0.1 kW

0.2 kW

0.75 kW

Bucket elevator

0.75kW

0.75kW

1.5 kW

2.2 kW

2.2 kW

2.2 kW

2.2 kW

Exhaust blower

0.4 kW

0.4 kW

0.75 kW

2.2 kW

2.2 kW

3.7/5.5 kW

3.7/5.5 kW

Ejector conveyor

1.0 kW

1.0 kW

1.0 kW

1.5 kW

1.5 kW

1.5 kW

1.5 kW

Heater

2.0 kW

2.0 kW

3.0 kW

3.0 kW

3.0 kW

5.0 kW

6.0 kW

Capacity/day

(Moisture 78%)

1.3 ton

2.2 ton

2.5 ton

4.5 ton

6.0 ton

9.0 ton

12.0 ton

Outlet/day

0.2 ton

0.35 ton

0.4 ton

0.7 ton

1.0 ton

1.5 ton

2.0 ton



Rapid Composting Machine Application



Can be widely used in organic sludge, organic waste, agricultural waste, pig manure, kitchen waste and other organic waste recycling resource recovery.

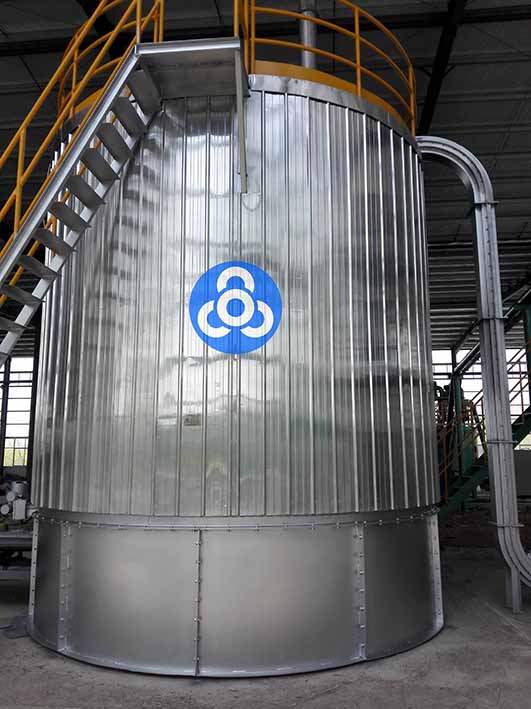

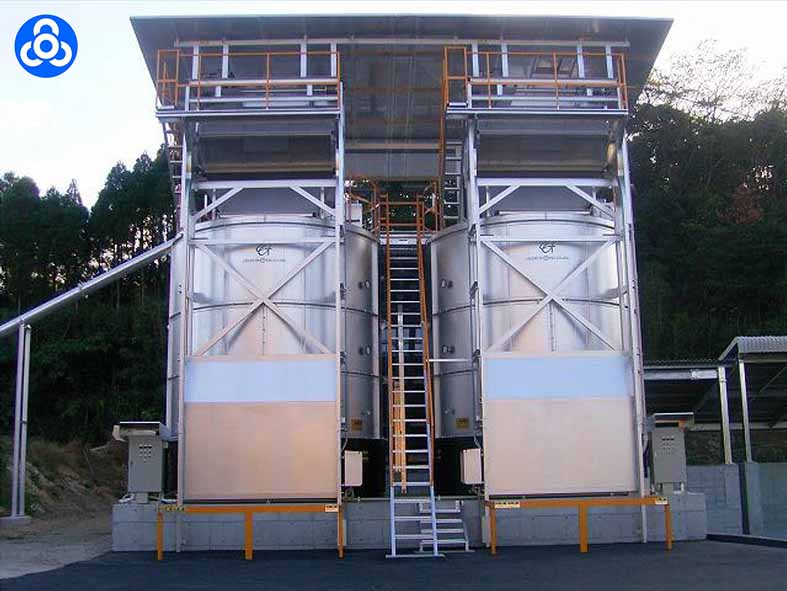

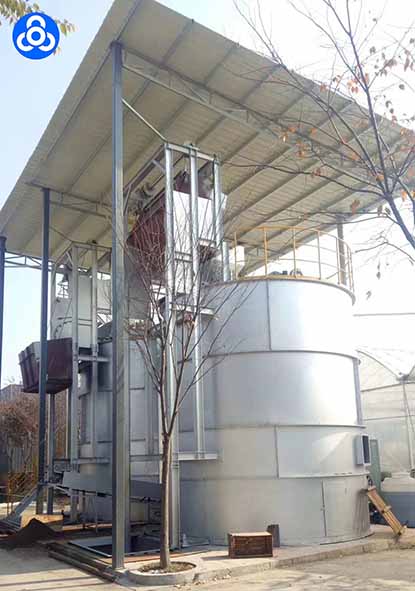

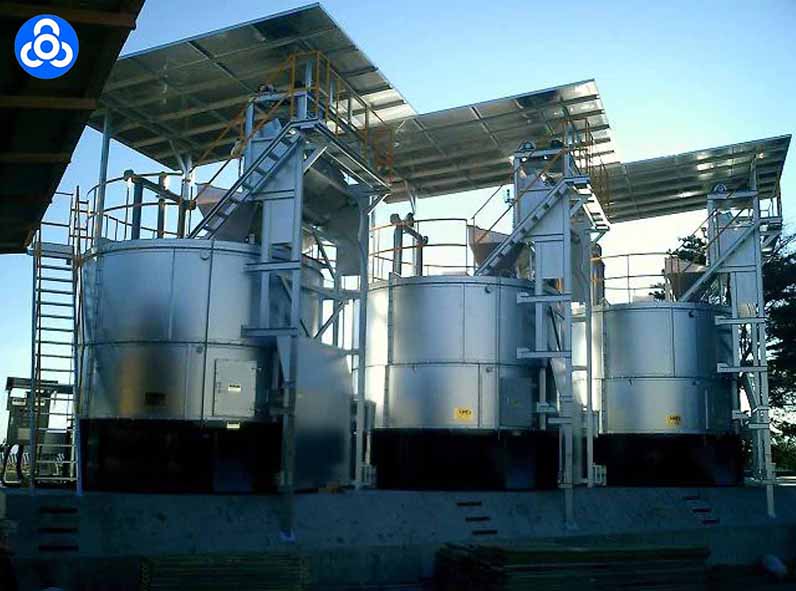

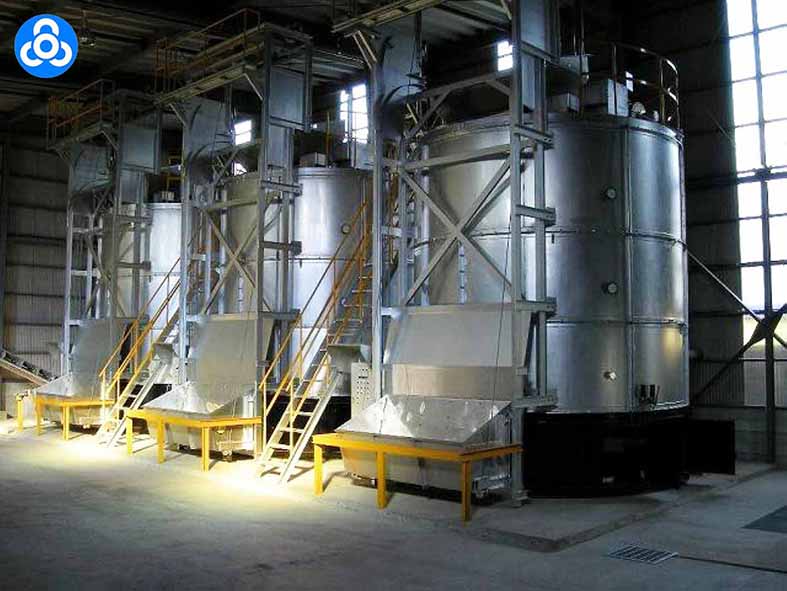

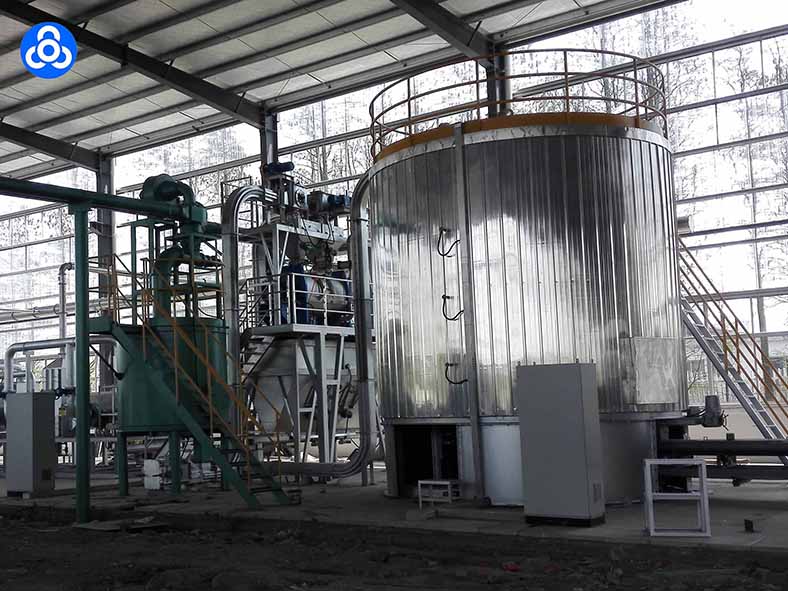

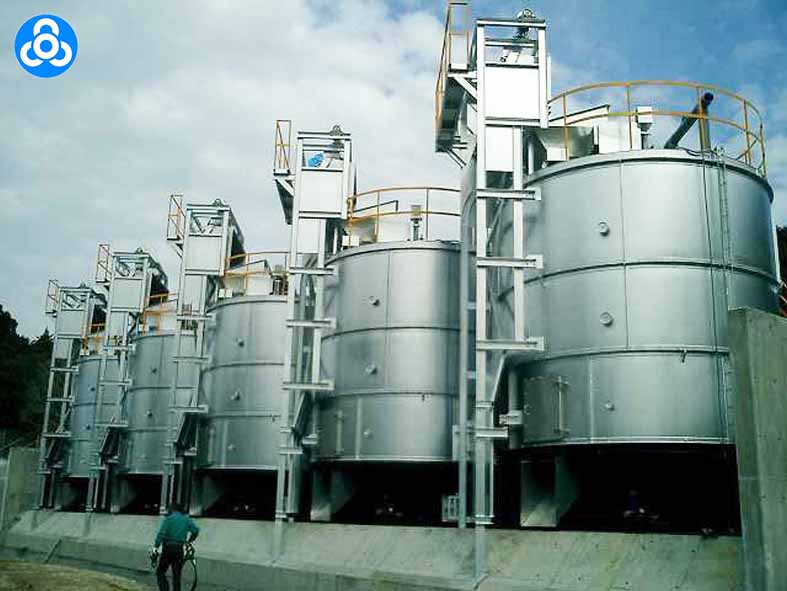

 Rapid Composting Machine Reference
