Reliable disinfection technology





Advantages of UV disinfection

Ultraviolet sterilizer is a disinfection method that uses short-wavelength ultraviolet (UV-C) light to kill or inactivate microorganisms by destroying nucleic acids and disrupting their DNA, leaving them unable to perform vital cellular functions. UV sterilizer is used in a variety of applications, such as food, air, and water purification. UV sterilizer devices can produce strong enough UV-C light in circulating air or water systems to make them inhospitable environments to microorganisms such as bacteria, viruses, molds and other pathogens. UV sterilizer can be coupled with a filtration system to sanitize air and water.

No risk for overdosing or leakage.

No residual or toxic emissions.

Quick disinfection. Short hydraulic retention time (seconds only).

Reduce chemical consumption.

Maintenance easy.

Does not leave taint or taste in water.

Effective disinfection of bacteria, moulds, spores and viruses.



 Comparison of disinfection methods



Item

Initial
cost

Operation
cost

Maintenance
cost

Disinfection
ability

Disinfection
time

Risk to
personnel

Toxic
residual

UV

Low

Low

Low

Excellent

1~5s

Low

No

Chlorine

Low

Medium

Medium

Good

25~45 min

Medium

Yes

Ozone

High

High

High

Unstable

5~10 min

High

Yes



 Product





Commercial Drinking Water Disinfection UV Germicidal Lamp Sterilizer

Automatic Cleaning 254nm Wavelength UV Sterilizer

Manual rod cleaning UV sterilizers

Immersion UV Sterilizer For Tank Water Disinfection

Channel type UV sterilizer

185nm TOC remover

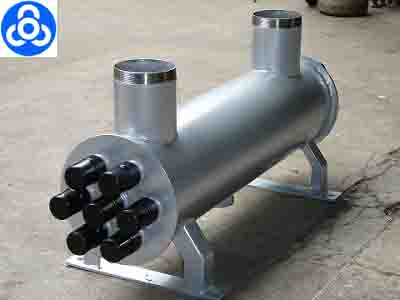

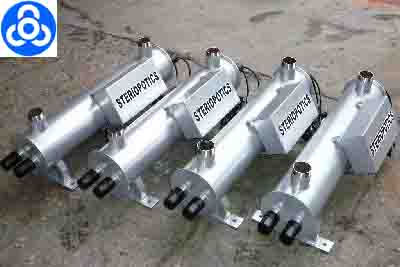

Product features

Full stainless steel shell,  smooth inner wall, without blind zone.

Equipment is cleaning and electroplating polishing

Customized "smart and remote" control panel.

High radiation efficiency and stable output power.

Equipped with the high light transmittance quartz socket tubes.

Quartz sleeve to ensure the best working temperature.

Specification



Type

Capacity
(ton/hr)

Gateway
(inch)

Lamp Watts
(W / vessel)

Number of Lamps

Length
(cm)

Diameter
(inch)

Height
(cm)

UVAS-8

7

2"

107

1

85

4"

19

UVAS-10

10

2"

121

1

85

6"

30

UVAL-1

15

2"

190

1

165

6"

30

UVAL-3

28

3"

190

2

165

8"

45

UVAL-5

45

4"

190

5

165

8"

45

UVAL-9

90

5"

190

9

165

10"

45

UVAL-12

120

6"

190

10

165

12"

65

Note

1.  Customized product is available.

2.  Temperature sensors and UV intensity sensors are optional.

3.  Auto-cleaner is optional.

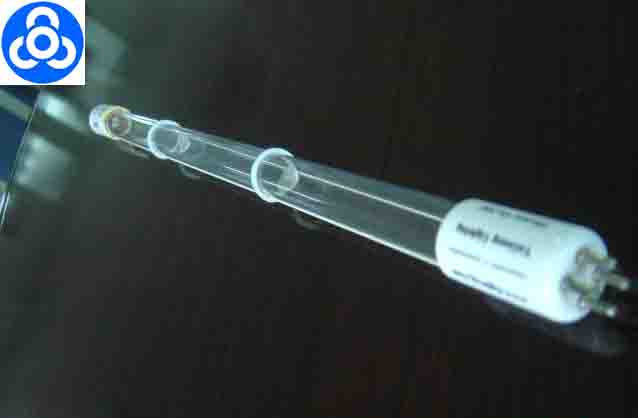

 Amalgam UV lamps





High output of UV irradiation

The UV intensity  is 3 times more than conventional UV lamps.



Cost reduction

High efficiency. Reduce size and save cost.



Wide range of applicability

Advanced lamp design makes it adaptable to various water temperature.



Long service life

Service life is up to 12,000hrs under normal condition.

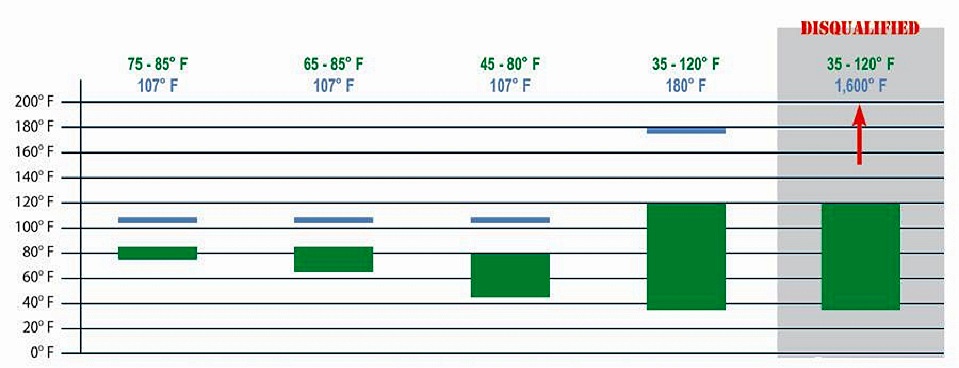

 Water temperature and UV lamps

lamp type

low-pressure

 softed-glass

low-pressure

low-output

low-pressure

high-output

low-pressure

Amalgam

low-pressure

softed-glass

control-current

0.25-0.35A

0.40-0.45A

0.40-1.20A

0.20-2.35A

2.00-15.00A



UV-dosage table



ORGANISM

TYPE

DISEASE

Dosage

μwsec/cm2

Bacillus subtilis spores

Bacteria

--------------

22,000

Bacteriophage

Virus

--------------

6,600

Coxsackie virus

Virus

Intestinal infection

6,300

Shigella spores

Bacteria

Bacterial Dysentery

4,200

Escherichia coli

Bacteria

Food poisoning

6,600

Fccal coliform

Bacteria

Intestinal infection

6,600

Hepatitis A virus

Virus

Hepatitis of the liver

8,000

Influenza virus

Virus

Influenza

6,600

Legionella pneumophila

Bacteria

Legionnaires Disease

12,300

Salmonella typhi

Bacteria

Typhoid Fever

7,000

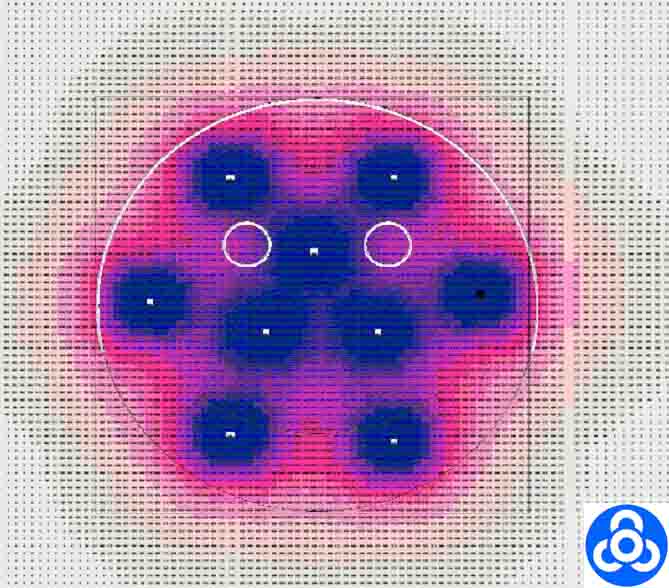

Simulation Software Evaluation

Blue: Dosage 45,000 μw*sec/cm2

Pink: Dosage   30,000 μw*sec/cm2

White: Chamber size is made.



Application



Cooling water disinfection

Wastewater disinfection

Medical wastewater disinfection

Pharmaceutical / Food&Beverage industry water treatment

Fish farms / Pools / Aquariums water purification and disinfection

Water recycling
