Improv the drying efficiency and produce a quality granular product.

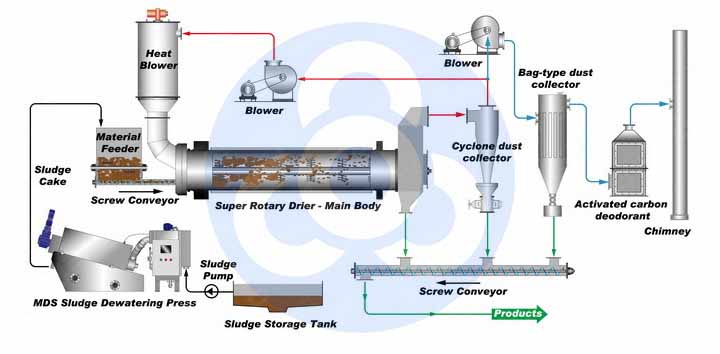

Process





Principle and Structure



After raw material is transported to feeding hopper by screw conveyor, mixing device inside the hopper initially disintegrates and mixes the material, which then will be transported by double-screw conveyor. During the process, the material will be further disintegrated and mixed before transported to dryer main body, which deeply disintegrates and mixes the material. Inside the dryer main body, during the movement of the lift, the material is moved circularly from the bottom to the top inside the dryer main body. When it drops from the top due to gravity, it is crushed into small particles by the disintegrating and mixing device with a high rotation speed. This process continues until the dried material is discharged outside the dryer. The exhaust gas is let off after treated by off-gas treatment system.

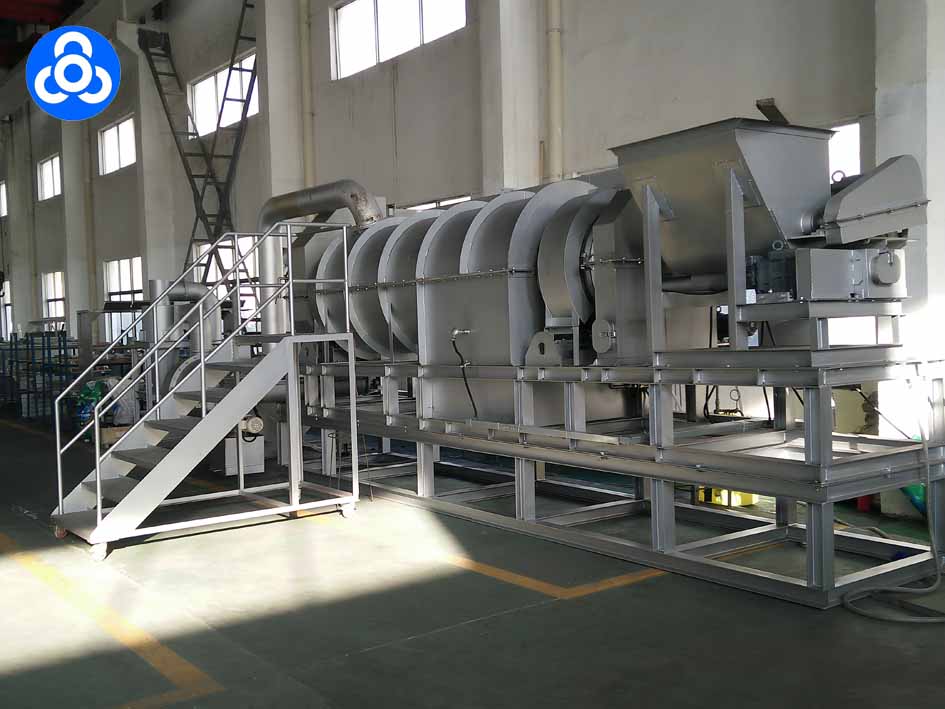

structure



Advantage



High capacity and high thermal efficiency

Controllable water content in products, wide application

 Simple operation, easy maintenance

Energy saving, high economic value



Specification



Indirect Hot Air Drying

Model

IHD-150

IHD-300

IHD-500

IHD-1000

IHD-1500

IHD-2000

Water Evaporation(kg/h

150

300

500

1000

1500

2000

Power(kW

11.3

13.5

20

60

82

125

Fuel UsageL/h

21

41

69

137

206

275

Weightton

14

21

36

60

77

95

Size

W(mm

6530

7800

9300

12800

13000

13500

Lmm

7230

8050

8500

13000

13800

14500

H(mm

3180

4500

5800

6800

7500

8200



Direct Hot Air Drying

Model

IHT-100

IHT-200

IHT-500

IHT-1000

IHT-1500

Capacitykg/h

100

200

500

1000

1500

Power(kW

5.5

8.3

20

37

62.5

Fuel UsageL/h

4.5

8.5

21

14.5

62

Weightton

11

15

27

57.5

82

Size

W(mm

3800

4100

8700

10400

11500

Lmm

5300

7400

10800

13200

15600

H(mm

3200

3600

4200

5300

6500

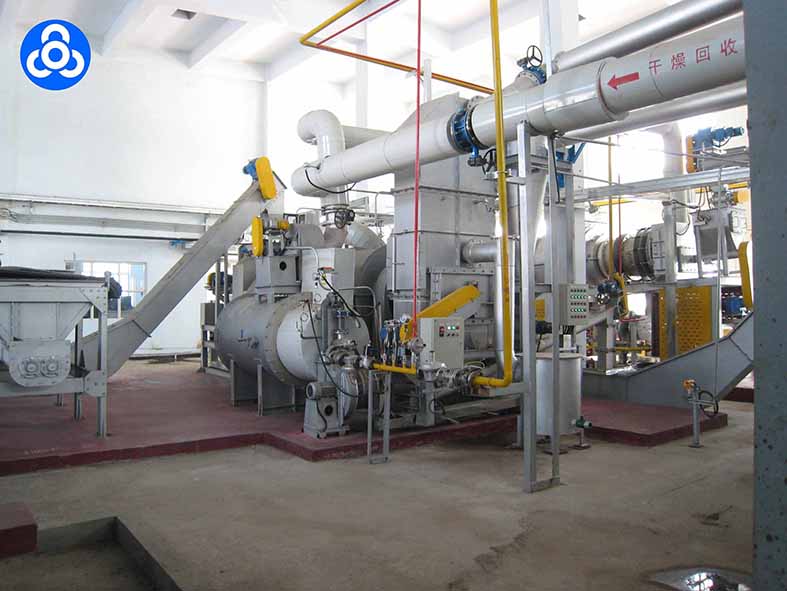

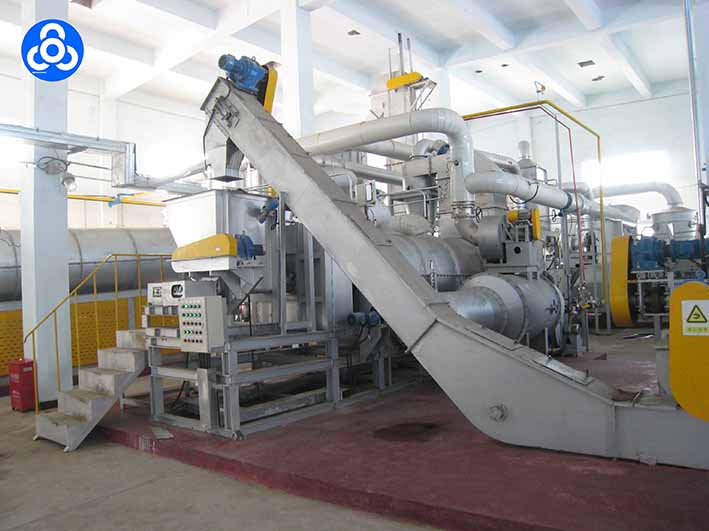

Reference
